PCIe interface solid state drives (PCIe SSDs) and SATA interface solid state drives (SATA SSDs) are two common types in storage device selection. The following will analyze the advantages and disadvantages of the two from multiple dimensions to help users make appropriate choices based on their own needs.

• transmission speed

PCIe SSD: Extremely fast transfer speed. The sequential read speed of PCIe 3.0 × 4 interface SSD can reach around 3500MB/s, and the sequential write speed can also reach around 3000MB/s; The performance of PCIe 4.0x4 interface SSD has been significantly improved, with sequential read speeds easily exceeding 7000MB/s and write speeds exceeding 5000MB/s. This is like a supercar on a highway, capable of quickly completing tasks of reading and writing large amounts of data.

SATA SSD: The theoretical transfer speed limit is about 600MB/s, and in actual use, the sequential read and write speed is usually around 500-550MB/s. Compared with PCIe SSD, the speed difference is significant, more like a sedan driving on ordinary roads.

• Installation method

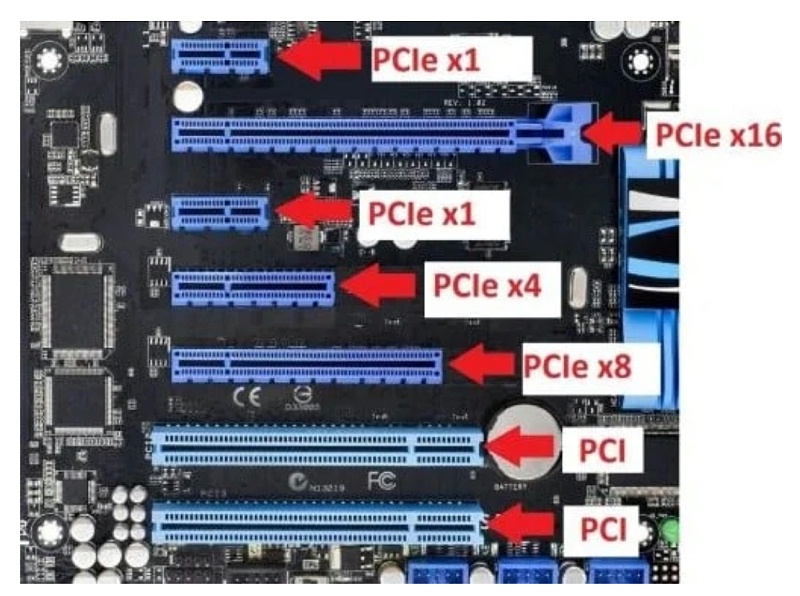

PCIe SSD: It usually exists in the form of an expansion card and needs to be inserted into the PCIe slot of the motherboard. Attention should be paid to the position and type of slots during installation to avoid conflicts with other expansion devices. Moreover, PCIe SSDs have a relatively large volume and may occupy a certain amount of chassis space.

SATA SSD: Compact in size, typically using 2.5-inch or M.2 (SATA protocol) specifications. A 2.5-inch SATA SSD can be connected to the motherboard's SATA interface through a data cable and secured to the hard drive rack of the chassis; M. SSDs with SATA protocol can be directly inserted into the M.2 slot on the motherboard, making installation more convenient and efficient.

• price

PCIe SSD: Due to its advanced technology and high-speed interface, the production cost is relatively high, so the market price is also relatively expensive. PCIe SSDs of the same capacity are typically priced 1.5-3 times higher than SATA SSDs.

SATA SSD: Mature technology, simple production process, low cost, and relatively affordable price. For users with limited budgets, SATA SSD is a more cost-effective option.

• cost-effectiveness

PCIe SSD: Although expensive, it can significantly improve work efficiency and user experience in scenarios that require high performance, such as professional video editing, 3D modeling rendering, and large-scale game loading. In the long run, it has high cost-effectiveness.

SATA SSD: For users who do not have high storage performance requirements such as daily office work, internet browsing, and video watching, SATA SSD can already meet their needs and is affordable, making it an economical storage solution.

• fever

PCIe SSD: High speed data transmission generates a large amount of heat, and in order to ensure its stable operation, it is usually necessary to equip it with heat sinks or radiators. If the heat dissipation is not good, it may lead to a decrease in SSD performance or even damage.

SATA SSD: It generates relatively little heat and generally does not require additional cooling measures. Even under long-term high load operation, it can maintain a relatively stable temperature.

• power consumption

PCIe SSD: High power consumption, especially when performing large amounts of data read and write operations, consumes a significant amount of power. This may have a certain impact on the battery life of laptops.

SATA SSD: Low power consumption, can effectively reduce computer energy consumption, extend battery life, suitable for power sensitive devices such as laptops, tablets, etc.

• Summary and Recommendation

Choose PCIe SSD: If you are engaged in professional work such as video editing, 3D modeling, scientific computing, etc., have extremely high requirements for storage performance, and have sufficient budget, then PCIe SSD is your best choice. It can bring you the ultimate storage experience and greatly improve work efficiency.

Choosing SATA SSD: If you only need basic operations such as daily office work, internet browsing, and watching videos, have low storage speed requirements, and have a limited budget, then SATA SSD is a more affordable choice. It can meet your daily usage needs while also saving you some expenses.
