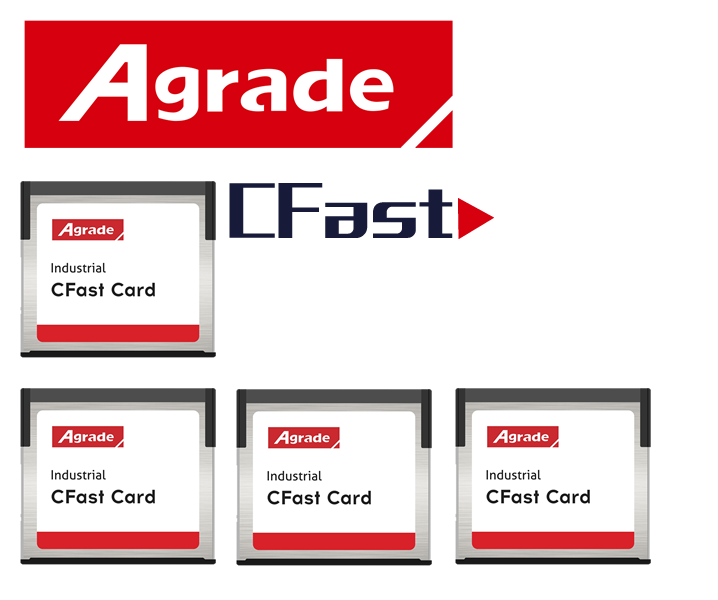

In industrial control and embedded applications, storage devices not only need to be stable and durable, but also require high-speed read and write capabilities. The AS36 industrial-grade CFast card (part of the Hi-Speed Series) launched by Agrade Storage (Shenzhen) Co., Ltd. has become the preferred solution for high-capacity and high-speed storage in the industrial control field, thanks to its dual advantages of high performance and high reliability.

Core advantage: dual guarantees of high speed and reliability

The core competitiveness of AS36 industrial-grade CFast card lies in the combination of "high-speed transmission + long-term stability":

High-speed read and write performance: Adhering to the CFast2.0 specification and SATAIII 6.0Gb/s standard, it boasts a read speed of up to 500MB/S and a write speed of up to 280MB/S. This enables efficient handling of real-time storage and transmission of vast amounts of data in industrial equipment, making it suitable for high-frequency read and write scenarios such as high-definition surveillance footage and equipment operation logs;

Maximum durability: Utilizing high-quality SLC/MLC NAND Flash chips, the SLC version boasts up to 60,000 endurance cycles, while the MLC version achieves up to 3,000 cycles. Coupled with advanced Wear Leveling and Error Correction Code (ECC) technologies, the risk of data corruption is significantly reduced;

Intelligent Monitoring and Protection: Supports S.M.A.R.T functions, enabling real-time monitoring of card health status and early warning of potential failures; also features 1500G impact resistance and 20G vibration resistance, capable of handling physical interference in industrial environments.

Scenario adaptation: meeting the stringent requirements of industrial control and embedded systems

The configuration of AS36 precisely aligns with the core requirements of industrial-grade applications:

Industrial control industry scenarios: such as PLC controllers, industrial computers, automated production line equipment, etc. These devices require large-capacity storage for running programs and massive amounts of operational data. The AS36's 4GB~512GB capacity (SLC/MLC dual solution) can flexibly cover different needs;

Embedded application scenario: With a compact design (42.8mm×36.4mm×3.3mm), it can be embedded into embedded devices with limited space. Meanwhile, the wide temperature version (-40℃~85℃) can adapt to extreme environments such as outdoors and low-temperature workshops;

Long-term stable operation: With an MTBF (Mean Time Between Failures) of 2 million hours and a standard operating voltage of 3.3V, the device can support uninterrupted operation for 7×24 hours, meeting the high availability requirements of industrial scenarios.

Product details: Balancing flexibility and practicality

AS36 also caters to the practical needs of industrial users in every detail:

Flexible capacity options: Two granular solutions are provided: SLC (4GB~64GB) and MLC (4GB~512GB), allowing users to flexibly combine them according to their cost and durability requirements;

Temperature adaptability and diversity: Supports two working temperature options: normal temperature (0℃~70℃) and wide temperature range, covering various environments from conventional workshops to extreme outdoor conditions.

As a representative product of the Agrade Storage Hi-SpeedSeries, the AS36 industrial-grade CFast card addresses the pain points of "insufficient speed, inadequate capacity, and poor stability" in industrial control scenarios with its characteristics of "high speed, large capacity, and high reliability". It is an excellent choice for industrial users to achieve efficient data storage.
