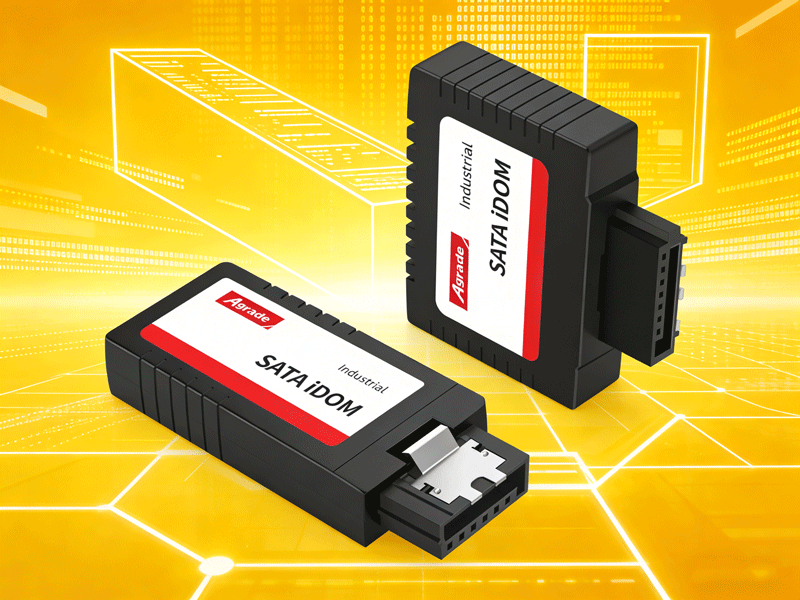

In embedded systems and small devices, the core rigid demand is for storage components that are "small in size, highly integrated, and highly stable". The DS36 SATA DOM drive (part of the Hi-Speed Series) launched by Agrade Storage (Shenzhen) Co., Ltd. has become an efficient solution for embedded device storage with its design as the "world's smallest SATA SSD".

Key highlights: Ultra-small size + High integration capability

The most prominent advantage of DS36 is its "strong adaptability in miniature form":

Ultimate Compact Design: With dimensions of just 30.0mm×28.0mm×7.1mm, it is one of the smallest SATA SSDs in the world. Featuring a cable-free, sturdy integrated structure, coupled with a 7PIN power supply function and built-in PIN7VCC design, it can be easily embedded into the motherboard or daughterboard, significantly saving internal space within the device;

Dual-channel + standard interface: Equipped with a dual-channel architecture, it is compatible with standard Serial ATA interfaces and can be directly used as a data storage medium, code storage device, or boot disk, adapting to various embedded systems without requiring additional adaptation or modification.

Performance and reliability: uncompromising in small size

Despite its compact size, DS36 maintains industrial-grade standards in terms of performance and durability:

High-speed transmission capability: Adhering to the SATAIII 6.0Gb/s standard, with a read speed of up to 190MB/S and a write speed of up to 70MB/S, it can meet the efficient requirements of program loading and data caching for embedded devices;

Long-term stable operation: Utilizing SLC/MLC NAND Flash particles, the SLC version achieves up to 60,000 cycles of erase and write, while the MLC version reaches up to 3,000 cycles. Coupled with bad block management, wear leveling, and ECC error correction technology, the risk of data corruption is significantly reduced;

Strong environmental adaptability: Supports two operating temperatures: normal temperature (0℃~70℃) and wide temperature (-40℃~85℃), with storage temperature coverage from -55℃ to 95℃; also features 1500G shock resistance and 20G vibration resistance, suitable for complex environments such as outdoors and industrial workshops; MTBF (mean time between failures) reaches 2 million hours, supporting long-term stable operation of the device.

Scenario adaptation: Precisely covering the needs of embedded devices

The characteristics of DS36 perfectly match various small embedded scenarios:

Embedded systems, such as industrial control boards, smart gateways, and small servers, can be directly integrated onto the motherboard due to their small size, replacing traditional mechanical hard disks or high-capacity memory cards;

Data storage terminal: Serving as a storage medium for devices such as POS machines, smart meters, and security cameras, it offers a capacity range of 4GB to 256GB (with both SLC and MLC options) to flexibly accommodate varying data volume requirements;

Special integrated device: A customized device suitable for extremely limited space, capable of expanding SATA storage functionality without requiring additional installation space.

As a representative product of the Agrade Storage Hi-SpeedSeries, the DS36 DOM drive addresses the pain points of "insufficient space, complex adaptation, and unreliable storage" in embedded scenarios with its characteristics of "ultra-small size, high integration, and strong stability", making it an excellent choice for storage in small industrial devices.
